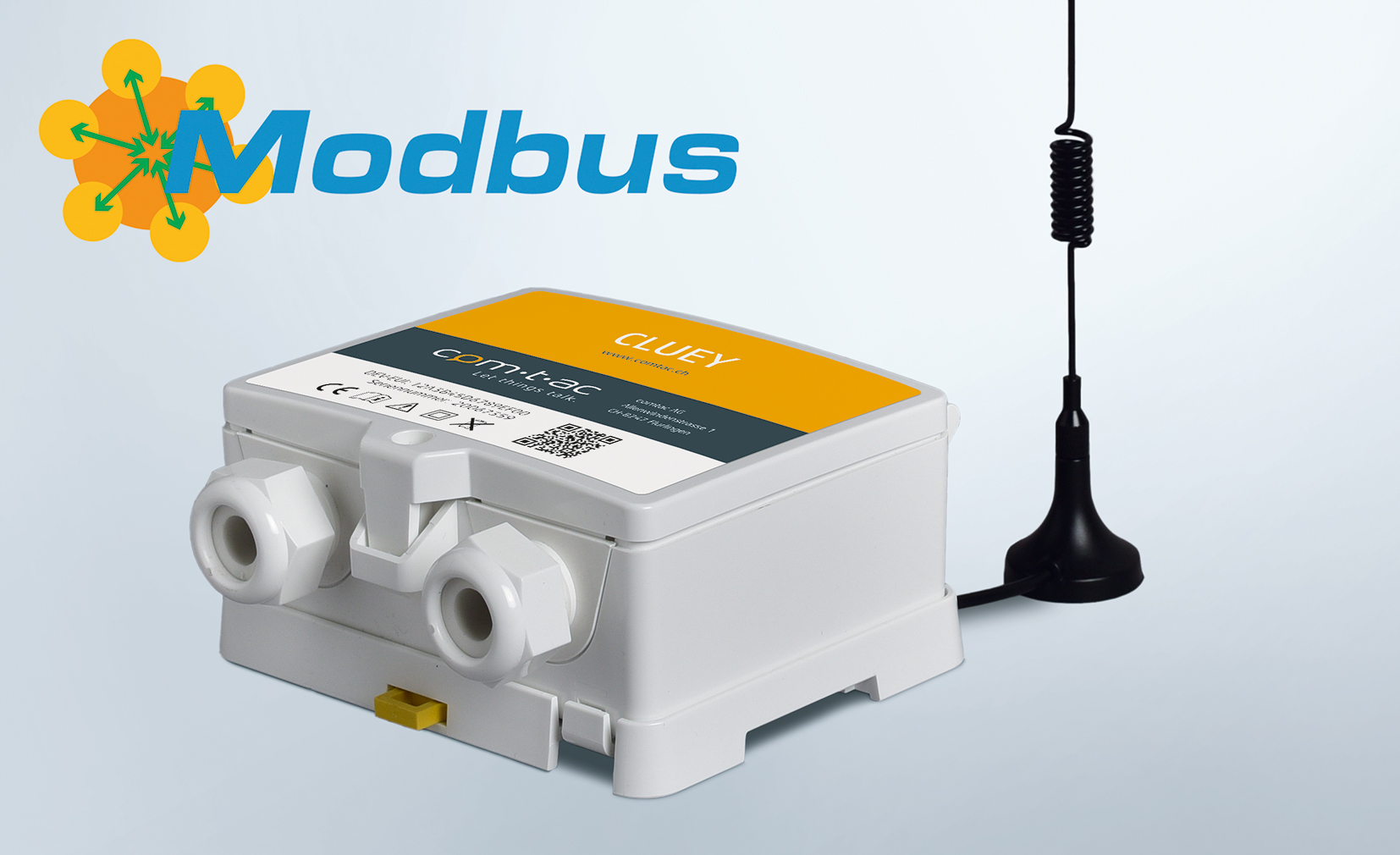

Cluey MB – variable controller and monitor

Flexible in terms of data acquisition, processing and radio technology, suitable for a wide range of applications, compact IP65 housing

Alarm and event monitoring: signals for monitoring autonomous small systems.
Data logging and optimisation: historical data to improve your processes.
Control and regulation: Central or local control of your actuators, digital outputs are available.

The radio gateway integrates Modbus RTU and local I/O for smart device integration. You choose the radio technology – whether LoRaWAN®, mioty, LTE CAT-M or Ethernet – your network determines. The Cluey MB is flexibly designed and supports various technologies. Self-sufficient thanks to low-power battery operation (alternatively 24 V), ideal for independent applications. Maximum functionality with minimum energy consumption.

Features
Areas of application
Downloads

10 V/20 mA analogue inputs
Digital and counter inputs
Integrated threshold monitoring for alarms and control
Digital outputs
- Controllable via radio and locally
Modbus RTU master with RS-485 interface
- Reading and transmission of up to 16 register blocks with 32 registers each
24 VDC or battery operation
Communication:
- LTE (also 450 MHz network) CAT-M
- LoRaWAN® (Class C and A)
- mioty
- Ethernet
IP65 housing for wall and DIN rail mounting
Pluggable connection terminals
