Cluey EM – load flow monitoring

Compact and quick-to-install solution for optimum network transparency in accordance with Section 14a of the Energy Industry Act

Produktfoto GRIDLAYER Power Meter und Cluey EM

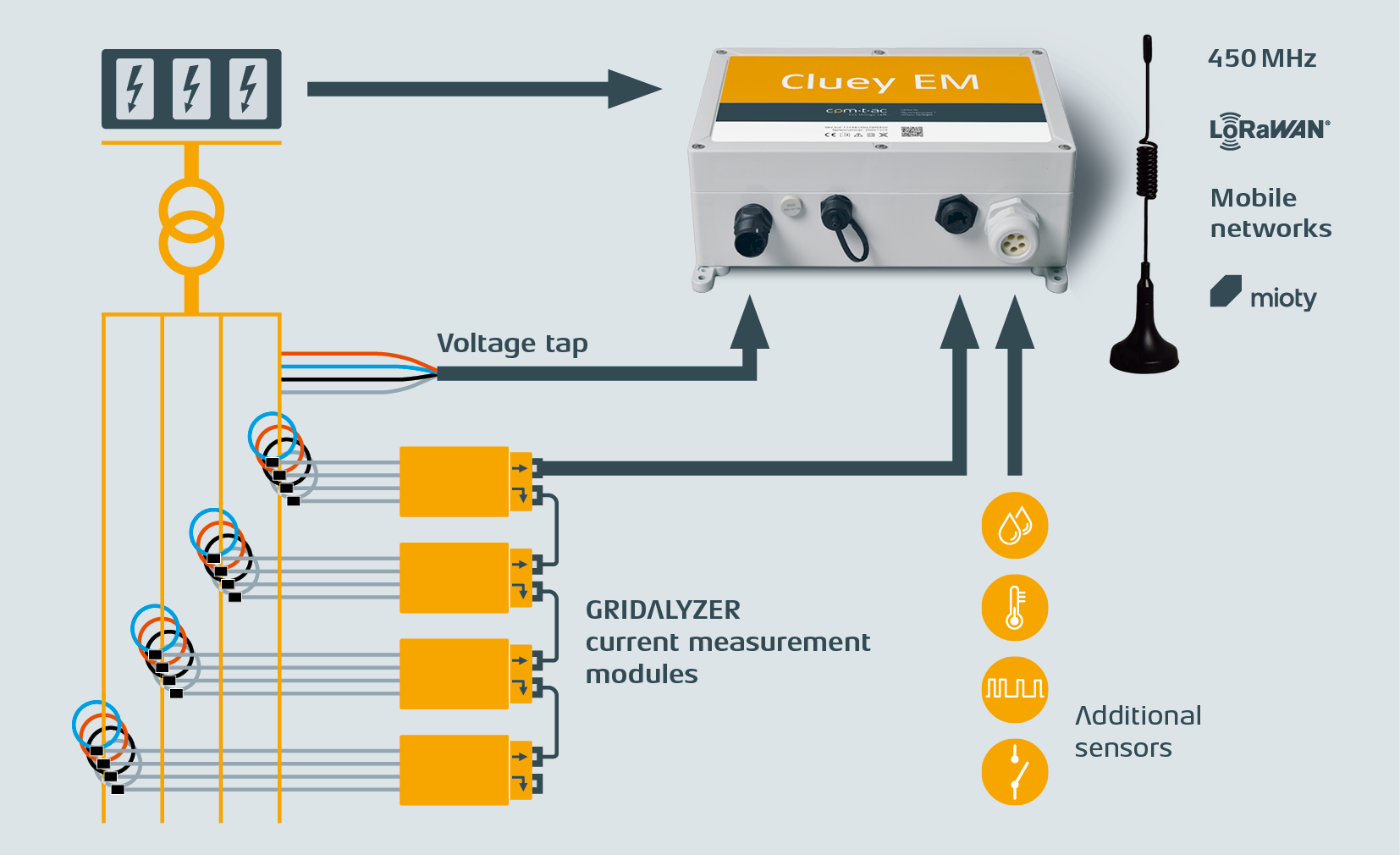

Cluey EM combines an innovative, practical system solution for load flow monitoring in transformer stations and cable distributors. With our GRIDALYZER modules, it records up to 20 outputs with phase resolution, including current, voltage and numerous characteristic values. Connectivity options are diverse: LTE, CAT-M, 450 MHz, Ethernet – the choice is yours! Installation is quick and easy thanks to the compact IP65 housing with integrated power supply and only two cable connections. The Cluey EM is system-open and interoperable with MQTT/JSON and Modbus RTU. Additional analogue and digital I/O expand the range of possible applications.

Features
Areas of application
Accessories
Downloads

Measuring system for U, I, P, Q, S, CosPhi
Communication:
- LTE (also 450 MHz network) CAT-M
- LoRaWAN® (Class C and A)
- mioty
- Ethernet
Certificate-based communication (MQTTS/HTTPS)
Secure configuration, firmware and certificate updates over the air
Wall-mount housing IP65, magnetic mount
System cable for power connection and GRIDALYZER current measurement modules
Modbus RTU interface for additional measuring devices
Power failure buffering via internal battery
10 V/20 mA analogue inputs
Digital and counter inputs
Digital outputs
Data exchange in standardised formats (MQTT/JSON)
Local diagnostic interface
