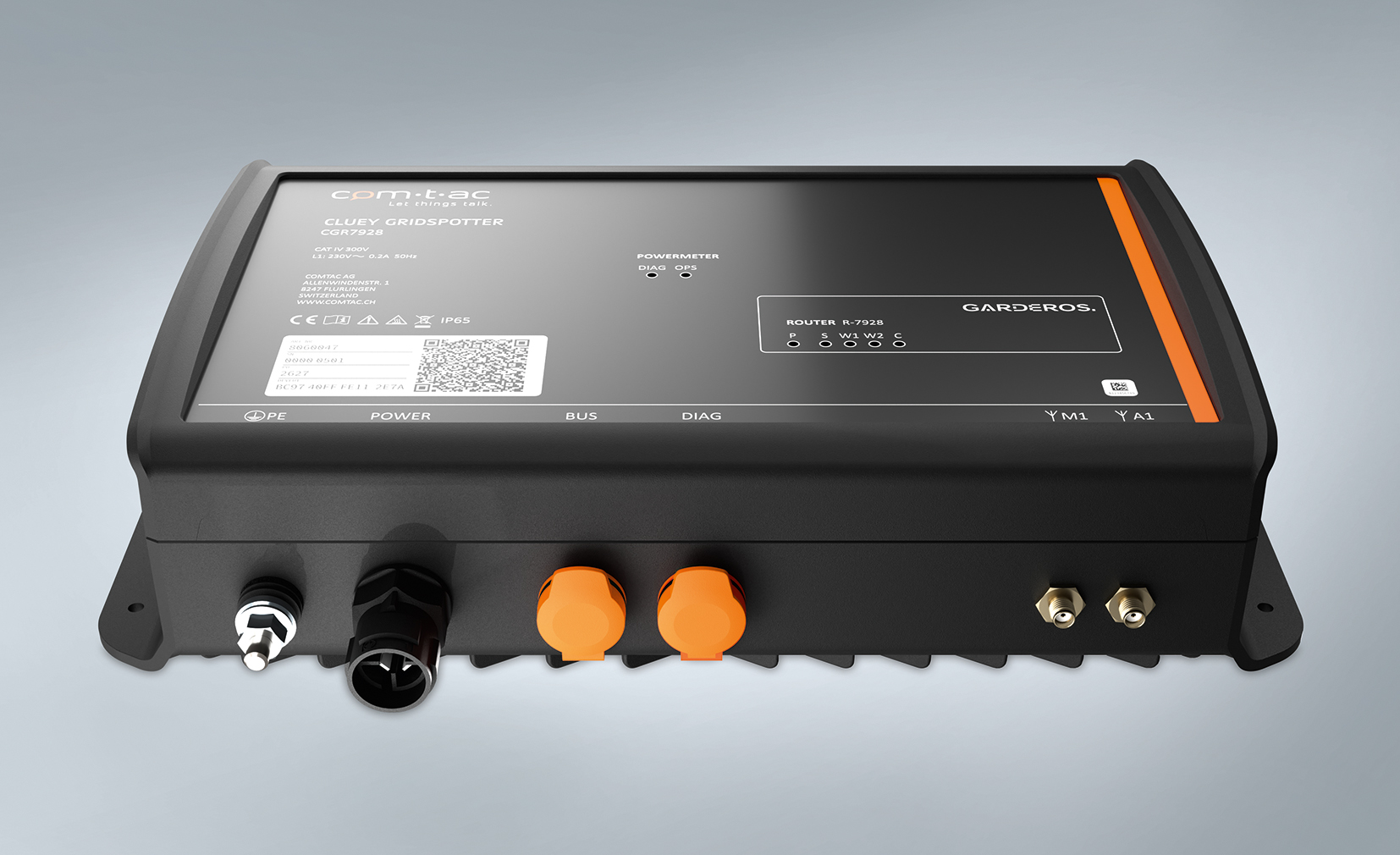

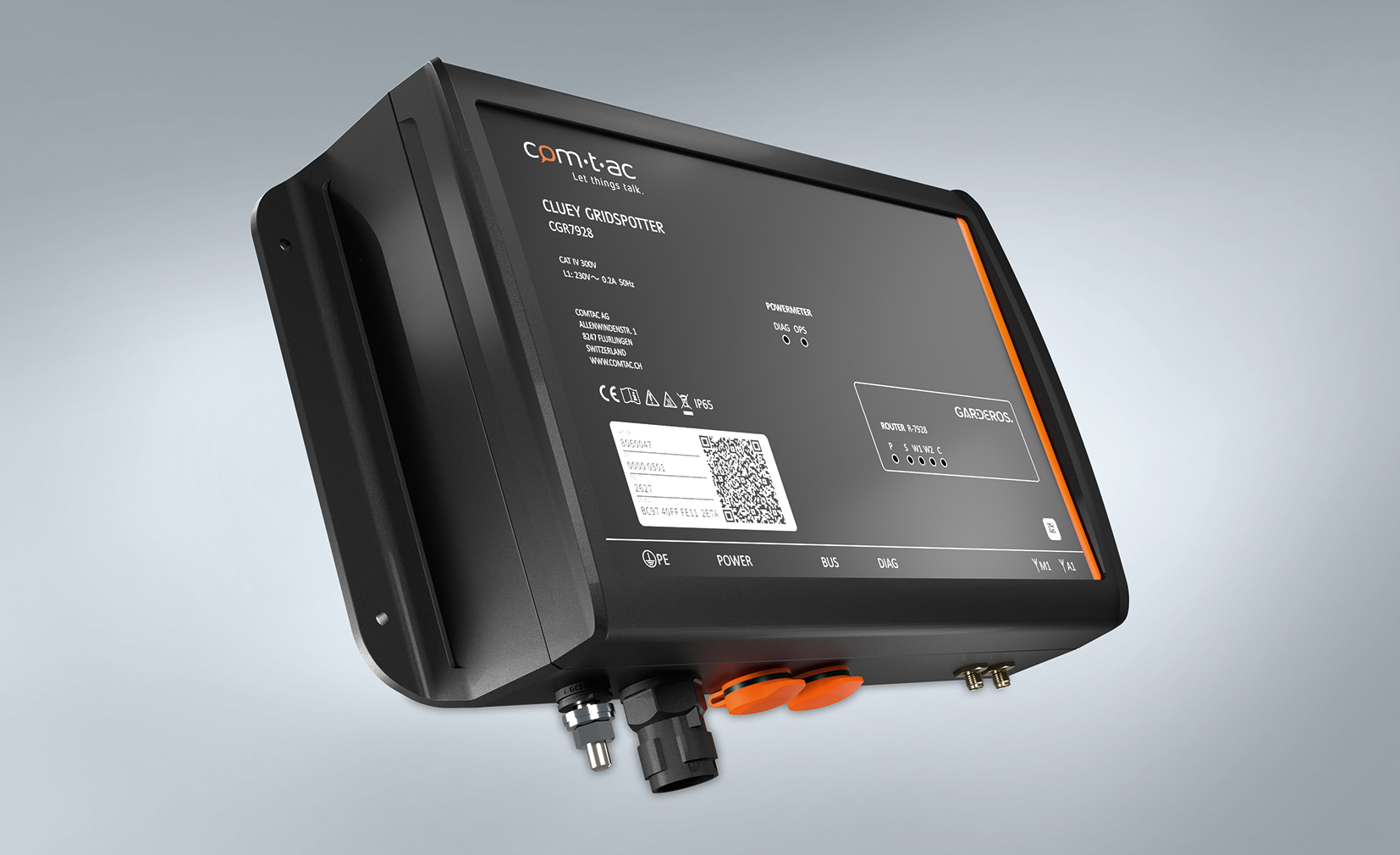

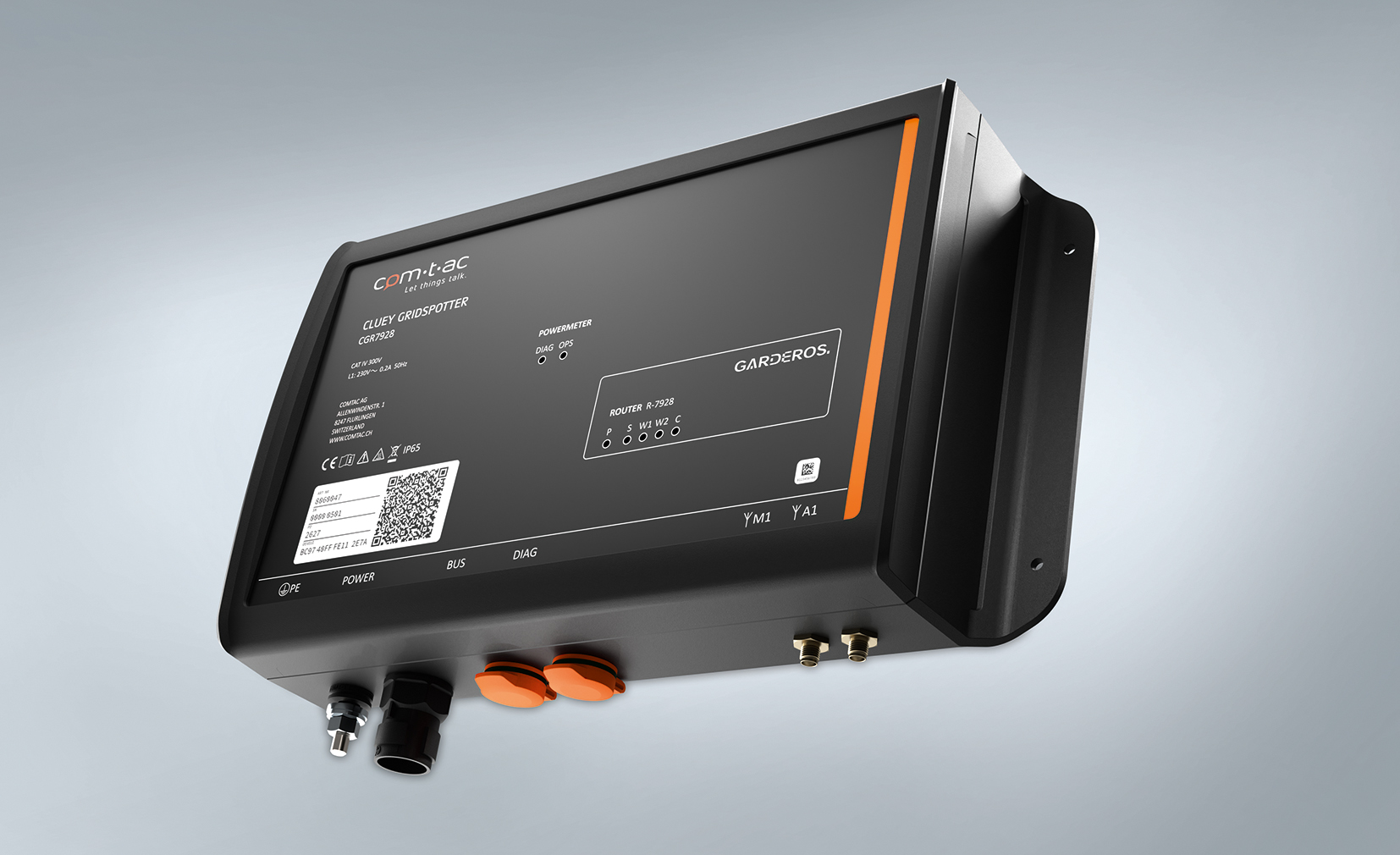

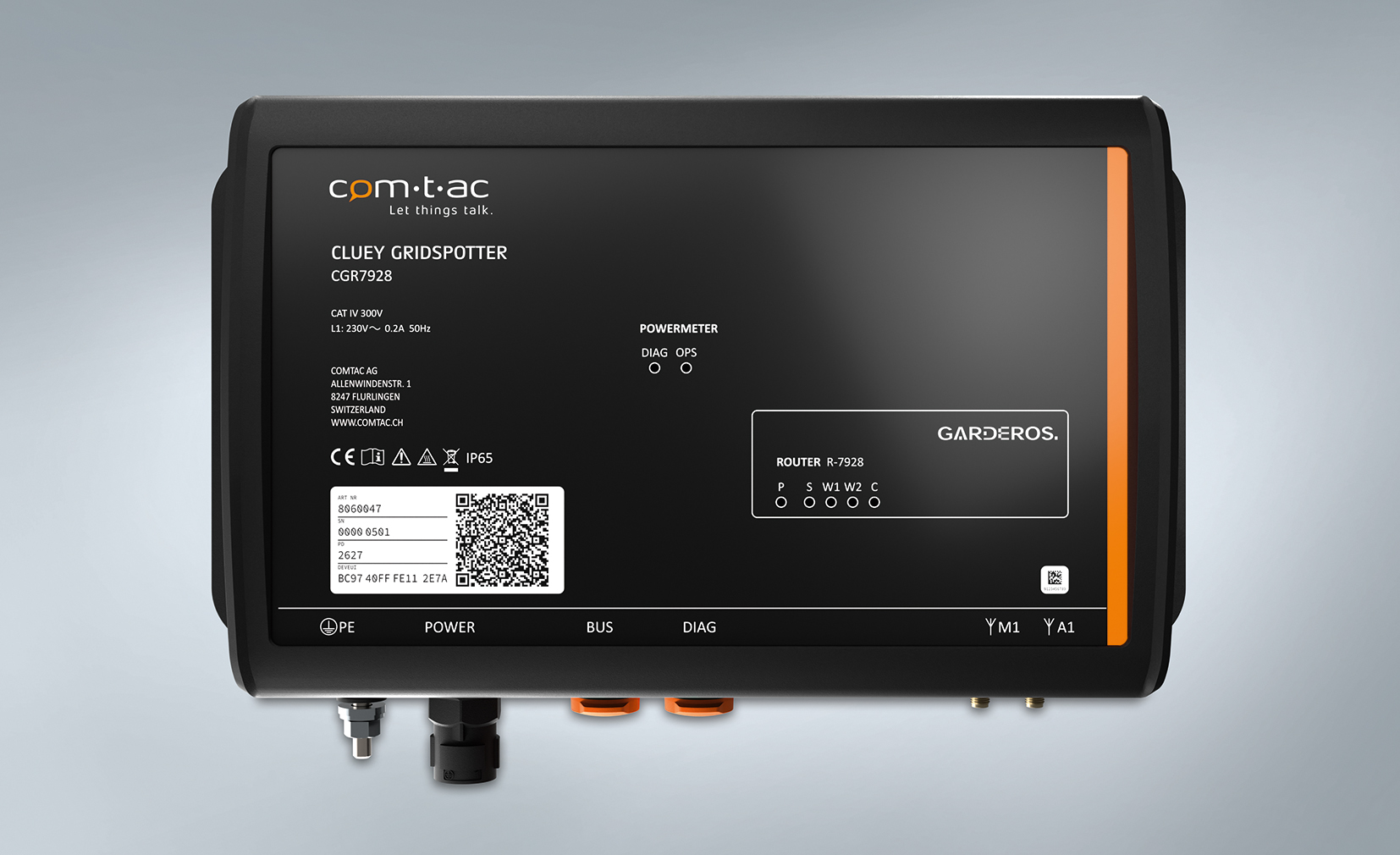

CLUEY GRIDSPOTTER – The Complete Solution for Load Flow Measurement in Low-Voltage Networks

One device. Full transparency for local network stations and cable distribution boxes. Compact, durable, and secure.

Show previous image
Show next image

The CLUEY GRIDSPOTTER was developed for anyone responsible for the digitization and safe operation of low-voltage grids. The system provides the necessary data foundation for transparent grid management, the integration of new consumers and generators, and the implementation of grid-beneficial control concepts in accordance with Section 14a of the German Energy Act (EnWG). All in one compact device.

Your benefits at a glance:

  • Full grid transparency: Monitor up to 20 feeders with phase- and feeder-specific resolution, including voltage, current, power, harmonic, and power quality data.
  • Quick commissioning: Modular current sensors with daisy-chain cabling enable easy retrofitting without modifications.
  • Space-saving even in tight installation situations: The exceptionally low profile ensures easy installation.
  • Low operational overhead: Zero-touch provisioning and centralized update and fleet management reduce the need for manual intervention throughout the entire lifecycle.
  • Greater planning certainty for your investment: Proven industrial technology, over 15 years of product availability, and comprehensive cybersecurity features lay the foundation for stable operational processes and long-term investment protection.
  • Easy integration into existing systems: IEC 60870-5-104 and MQTT Sparkplug B support direct connection to grid control systems and data platforms.
  • Greater compliance with regulatory requirements: The solution provides the data foundation for grid-optimized control in accordance with Section 14a of the German Energy Act (EnWG) and facilitates its practical implementation during operation.
  • Features
  • Areas of Application
  • Accessories
  • Downloads
Features
  • Compact housing: 70 mm height, IP65 housing and cabling
  • All system components integrated: power supply, GRIDALYZER voltage measurement module, Garderos R-7928 router, communication and control unit
  • Phase- and output-resolved current measurement for up to 20 outputs
  • Direct connection to the low-voltage system, CAT IV, operating temperature -20 °C to 60 °C
  • Communication via LTE and the 450 MHz KRITIS network
  • IEC 60870-5-104 and MQTT Sparkplug B
  • Zero-touch provisioning and centralized configuration, update, and fleet management
  • Mounting via magnet or screw fastening
Areas of Application

The CLUEY GRIDSPOTTER is the complete solution for load flow measurement in local network substations and cable distribution stations.

Accessories
  • GRIDALYZER Current Sensors (50 mm ⌀, 1 kA) and RS2140-3/4 (140 mm ⌀, 2 kA)
  • Low-voltage connection cables (various connection types)
  • Power Meter bus cables (various lengths)
Downloads

You can find the downloads for this product in our Support section.
